When selecting foam materials, most datasheets focus on parameters such as:
Density
Hardness
Compression set
Elongation
These specifications are useful, but in real converting or die cutting operations, many issues simply don’t show up in the datasheet.
A common situation converters run into is this:
Two foam materials may look very similar on paper, yet behave completely differently during die cutting.
One material can run smoothly for thousands of parts with clean edges and stable dimensions.
Another may look acceptable at first, but problems start appearing during production:
Edge tearing
Foam dust accumulation on the die
Small parts deforming
Dimensional drift over time
In many cases, these issues are related to the stability of the foam cell structure, rather than basic parameters like density or hardness.
Before moving into mass production, experienced converting engineers often run a very simple test:

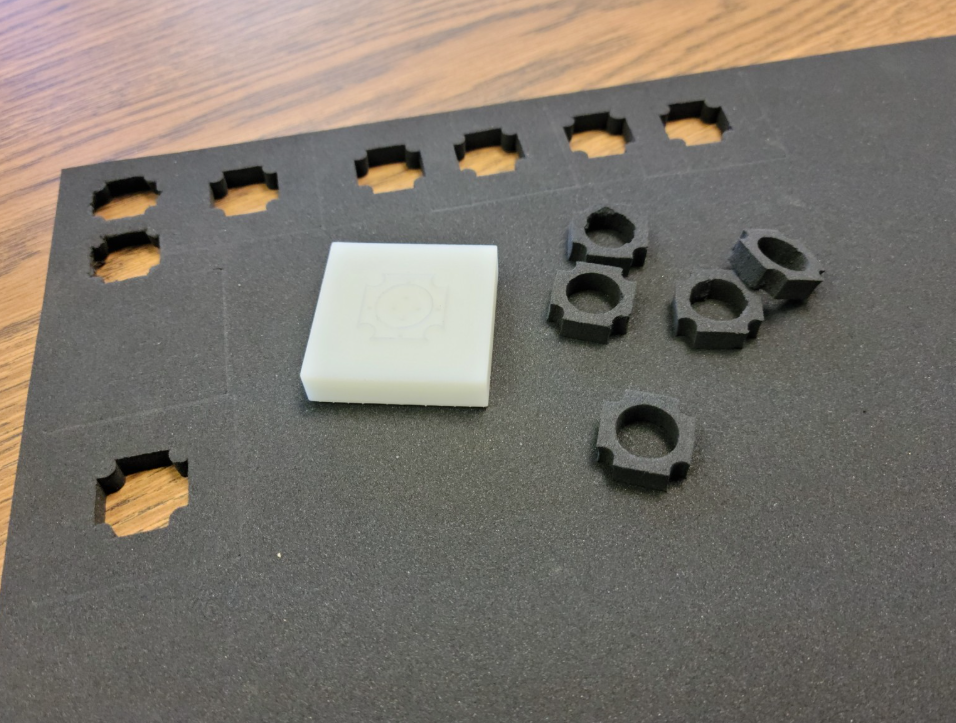

A small-geometry die cutting trial

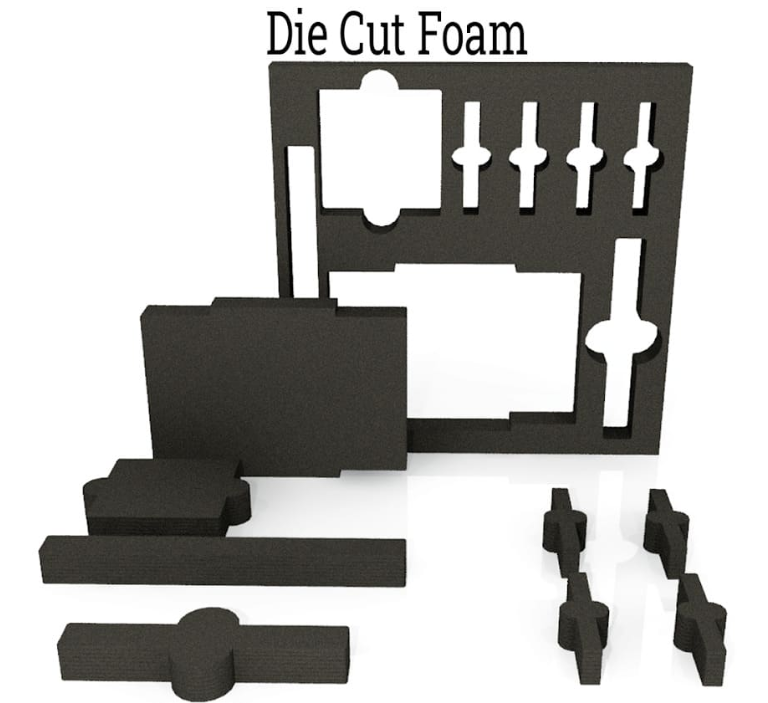

Instead of cutting large pieces, they intentionally test more challenging geometries, such as:
Very narrow strips

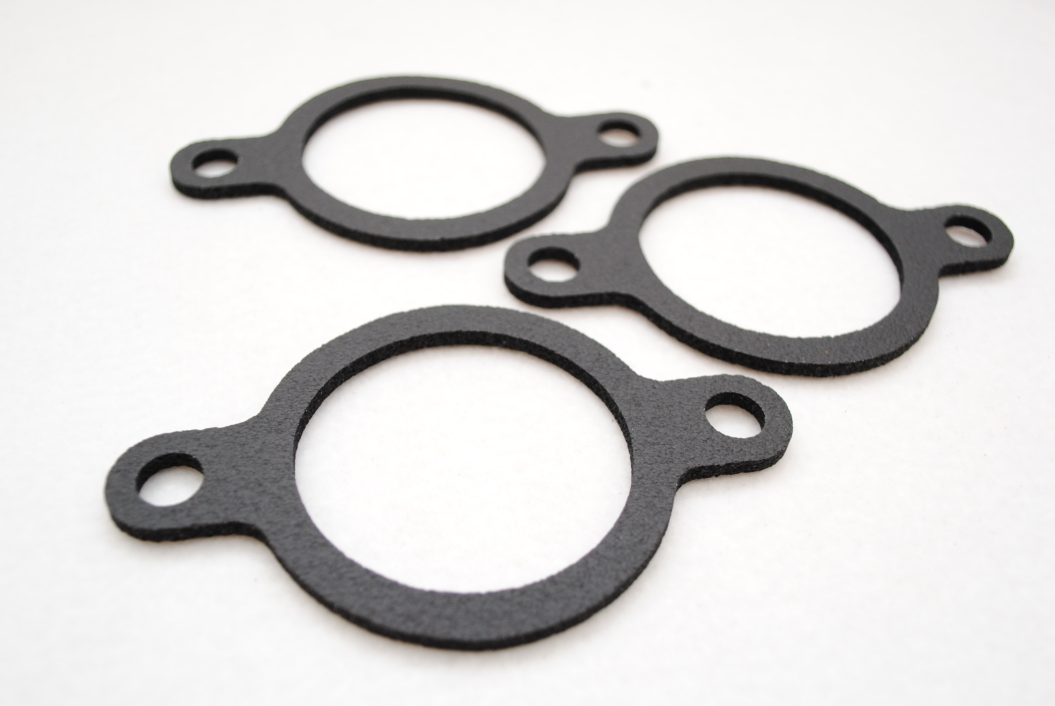

Small gaskets
Sharp corners
Complex contours
These shapes quickly reveal potential material weaknesses.
If the foam structure is not stable enough, you may start seeing:
Edge tearing
Irregular cut edges
Dimensional distortion
When the foam structure is stable, the edges usually come out clean and consistent.
In industries like electronics and tape converting, another factor matters a lot:
Foam dust during die cutting
Some foam materials generate fine particles during cutting.
In automated production lines, this dust can:
Contaminate adhesive surfaces
Affect bonding quality
Enter sensitive electronic assemblies
Because of this, some converters simply run a longer die cutting trial and observe:
Whether dust accumulates on the die
Whether particles appear around the machine
It’s a simple observation, but often more practical than laboratory testing.
Another issue sometimes appears after die cutting.
The parts may look dimensionally correct right after cutting, but slight changes occur after some time.
This can be related to:
Internal stress release
Insufficient structural stability of the foam
A quick way to check is to compress the cut parts for a short period and observe their recovery and dimensional stability.
Stable materials tend to maintain their shape more consistently.
In many converting projects, processing stability becomes just as important as the material specifications themselves.
This is especially true for applications such as:
Foam tapes
Sealing gaskets
Electronic cushioning components
Automotive interior parts
For this reason, many engineering teams run a simple die cutting trial early in the material evaluation process.
Sometimes a quick trial can reveal issues that would otherwise appear much later in production.
And catching those problems early can save a significant amount of time and cost.
