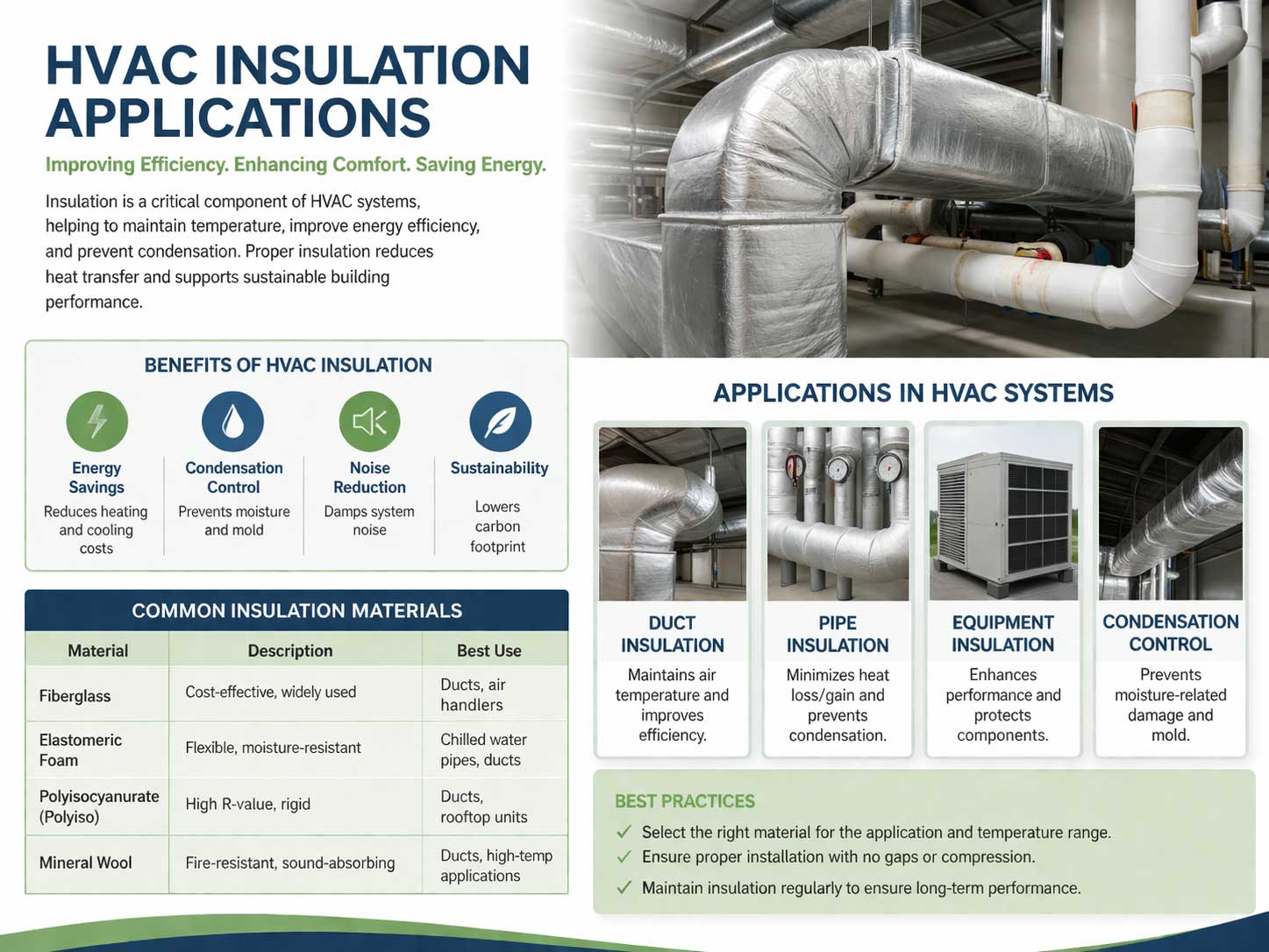

Applications of Insulation Materials in HVAC Systems

In modern buildings and industrial environments, HVAC (Heating, Ventilation, and Air Conditioning) systems are responsible not only for regulating air and ensuring occupant comfort, but also for energy efficiency and environmental performance. Insulation materials play a critical role in these systems, directly impacting operational efficiency, lifespan, and overall costs.

1. Core Functions of HVAC Insulation Materials

HVAC insulation materials serve several key purposes:

1. Thermal Resistance
   They prevent heat loss or gain in pipes and equipment surfaces, maintaining consistent output temperatures and improving system efficiency.

2. Energy Savings and Cost Reduction
   High-performance insulation reduces energy consumption for heating or cooling, lowering operational expenses.

3. Condensation and Corrosion Prevention
   Low-temperature surfaces are prone to condensation, which can lead to corrosion and mold growth. Insulation materials block moisture penetration, protecting equipment.

4. Noise and Vibration Control
   Insulation can dampen airflow noise and mechanical vibrations, enhancing indoor comfort.

2. Common Types of HVAC Insulation Materials

Different materials are selected based on performance requirements and application environments:

1. Closed-cell Polyethylene/Polypropylene Foam (XPE/IXPE/IXPP)

   • Properties: Waterproof, moisture-resistant, chemically stable, low water absorption

   • Advantages: Independent closed-cell structure prevents water penetration; stable thermal performance; easy installation

   • Applications: Refrigerant pipes, air ducts, rooftop HVAC units

2. Microcellular Polyurethane Foam (PU)

   • Properties: Semi-closed cell structure, low compression set, excellent stress relaxation resistance

   • Advantages: Conforms to irregular surfaces, superior sealing performance

   • Applications: Chilled water lines, hot water pipes, modular air conditioning units

3. Silicone Foam

   • Properties: High-temperature and low-temperature resistance, flame-retardant, self-extinguishing

   • Advantages: Ideal for high-temperature or fire-sensitive HVAC systems

   • Applications: Commercial AC units, electrical control cabinets, transportation and specialized industrial environments

3. Key Application Scenarios

1. Piping Systems
   Heat and chilled water lines are critical points for energy loss. Covering pipes with closed-cell or PU foam can reduce heat loss by over 30% while preventing condensation-related corrosion.

2. Air Handling Units and Ducts

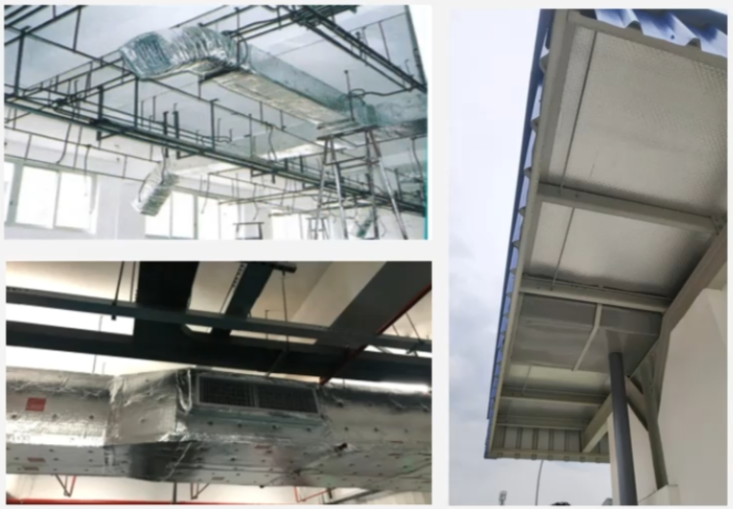

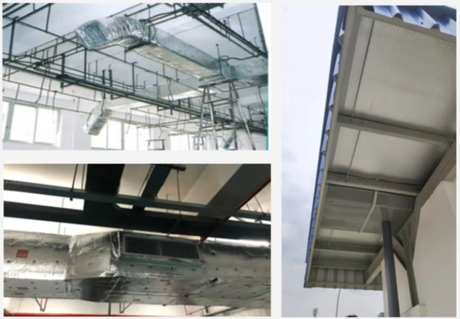

   Insulating ducts prevents thermal losses and reduces airflow noise. IXPE/IXPP foams can be applied directly to duct surfaces, offering easy installation and low maintenance.

3. Industrial and Specialized Environments
   High-temperature workshops, cold storage, or corrosive environments require high-temperature and chemically resistant materials, such as silicone foam or chemically resistant PU foams, to ensure long-term stability and safety.

4. Material Selection and Installation Considerations

• Thickness: Choose based on pipe diameter and temperature differentials to meet thermal resistance requirements.

• Fire Rating: For commercial or industrial applications, prioritize flame-retardant or self-extinguishing materials.

• Installation: Use continuous wrapping or modular application methods to avoid thermal bridging.

• Durability: Select materials with low compression set and high aging resistance to reduce replacement frequency.

5. Conclusion

The efficiency and lifespan of HVAC systems largely depend on the performance of insulation materials. Proper material selection and installation can significantly reduce energy consumption, extend equipment life, and improve occupant comfort and safety. As building energy codes and industrial environmental standards tighten, high-performance foams and advanced composite insulation materials will play an increasingly important role in HVAC applications.
