As EV battery systems continue evolving toward higher energy density and faster charging speeds, thermal management materials are facing much harsher operating environments than before.
Many battery packs pass initial validation tests, yet thermal insulation materials begin to deform, shrink, crack, or lose protection capability after long-term exposure to elevated temperatures.
The problem is not simply “temperature resistance.”
In most cases, the root cause lies in the mismatch between material structure, thermal aging behavior, compression stability, and actual battery pack design conditions.
This article explains why thermal insulation materials fail in high-temperature battery environments — and what engineers should evaluate when selecting foam materials for EV battery systems.

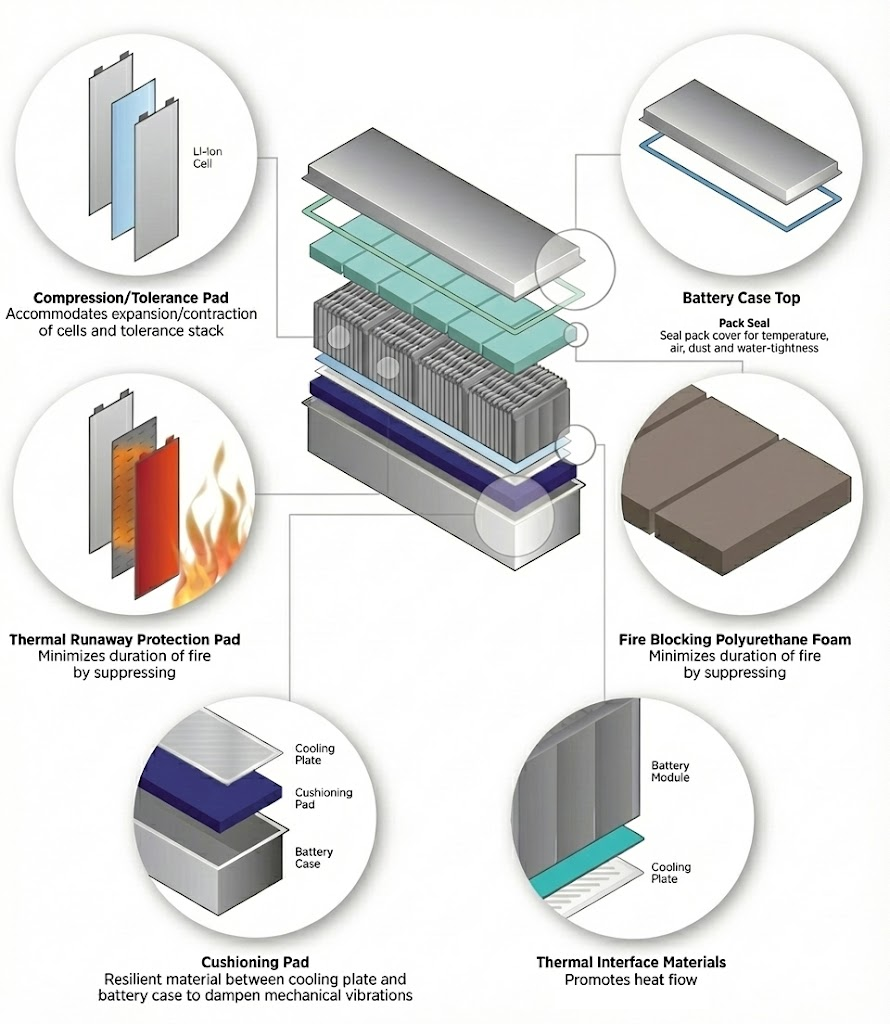

Inside a battery pack, insulation and cushioning materials are commonly used for:
Cell-to-cell thermal barriers
Module side padding
Liquid cooling plate insulation
Busbar protection
Gap filling and vibration damping
Thermal runaway delay protection
These materials are expected to simultaneously provide:
Low thermal conductivity
Mechanical cushioning
Compression recovery
Flame retardancy
Long-term dimensional stability
Resistance to heat aging
However, many traditional foam materials were originally developed for consumer electronics or general industrial sealing applications — not for continuous exposure to aggressive thermal cycling in EV batteries.
That difference becomes critical.
Many conventional foam materials rely on internal closed-cell structures to maintain thickness and insulation performance.
Under prolonged high temperatures:
Cell walls soften
Gas inside cells expands or escapes
Internal structure collapses
Thickness decreases permanently
Once shrinkage occurs:
Contact pressure changes
Gap control becomes unstable
Thermal protection weakens
Vibration resistance drops
This is especially dangerous near cylindrical or prismatic cells where dimensional tolerance is critical.
One of the most overlooked issues is compression set.
Some materials initially feel soft and resilient, but after repeated heat cycles:
Recovery ability decreases
Permanent deformation occurs
Cushioning force disappears
Gaps form inside the module
This directly affects:
Cell fixation stability
Long-term NVH performance
Mechanical shock absorption
Thermal interface consistency
In practical battery systems, a foam that loses elasticity after aging often becomes a hidden reliability risk.
Certain materials may pass initial flame tests but gradually lose flame-retardant performance after thermal aging.
Reasons include:
Additive migration
Polymer degradation
Surface cracking
Carbonization instability
As battery systems move toward higher voltage platforms and fast charging architectures, maintaining stable flame-retardant behavior during long-term thermal exposure becomes increasingly important.
High temperatures accelerate chemical reactions.
Some foam materials may:
Release volatile substances
Absorb electrolyte vapor
Become brittle after chemical exposure
Generate contamination inside battery systems
This becomes especially critical in enclosed battery pack environments where thermal runaway risks already exist.
Many buyers focus only on basic specifications such as:
Density
Thickness
Hardness
Initial thermal conductivity
But real EV battery performance depends more on:
Heat aging stability
Compression retention after cycling
Long-term dimensional consistency
Multi-functional balance between insulation and cushioning
A material performing well in a laboratory sample test may fail after months of actual thermal cycling.
This is why simply comparing datasheets is often misleading.
Typical advantages:
Lightweight
Excellent closed-cell structure
Good water resistance
Stable thermal insulation performance
Low VOC
Widely used for:
Cell cushioning
Cooling plate insulation
Module gap management
However, material formulation and crosslinking quality heavily affect long-term thermal stability.
Advantages:
Excellent high-temperature resistance
Low compression set
Superior flame resistance
Good long-term elasticity
Commonly used in:
Thermal runaway protection zones
High-temperature sealing areas
Fire barrier structures
The tradeoff is usually higher material cost.
Advantages:
Excellent softness and conformability
Good energy absorption
Superior sealing capability
Often used for:
Precision cushioning
Gap compensation
Sensitive module interfaces
But heat aging performance depends strongly on formulation quality.
When selecting insulation and cushioning materials for EV battery applications, the key questions should include:
How much dimensional change occurs after long-term high-temperature exposure?
Will the material maintain force after repeated compression cycles?
Does fire performance remain stable after aging?
Can the material work reliably alongside adhesives, cooling systems, and structural components?
Was the material tested under actual battery pack environments or only under ideal laboratory conditions?
Future EV battery materials are no longer expected to provide only one function.
OEMs increasingly expect foam materials to combine:
Thermal insulation
Cushioning
Flame resistance
Weight reduction
Process compatibility
Long-term durability
This is pushing material suppliers toward higher-performance crosslinked foams, silicone foams, and advanced thermal management structures.
The competition is no longer just about “having foam.”
It is about whether the material can remain stable after thousands of thermal cycles inside increasingly demanding battery systems.
Battery thermal insulation failure is rarely caused by a single factor.
Most failures occur because materials designed for conventional applications are being pushed into environments with:
Higher temperatures
Faster charging
Greater energy density
Longer service life expectations
For EV battery systems, thermal insulation materials are no longer simple auxiliary components.
They have become part of the battery safety architecture itself.
Choosing the right foam material means evaluating not only initial performance — but how the material behaves after years of thermal stress, compression, and real-world operation.
